Aviation Fuel Tanks
Aviation Fuel Storage Tanks

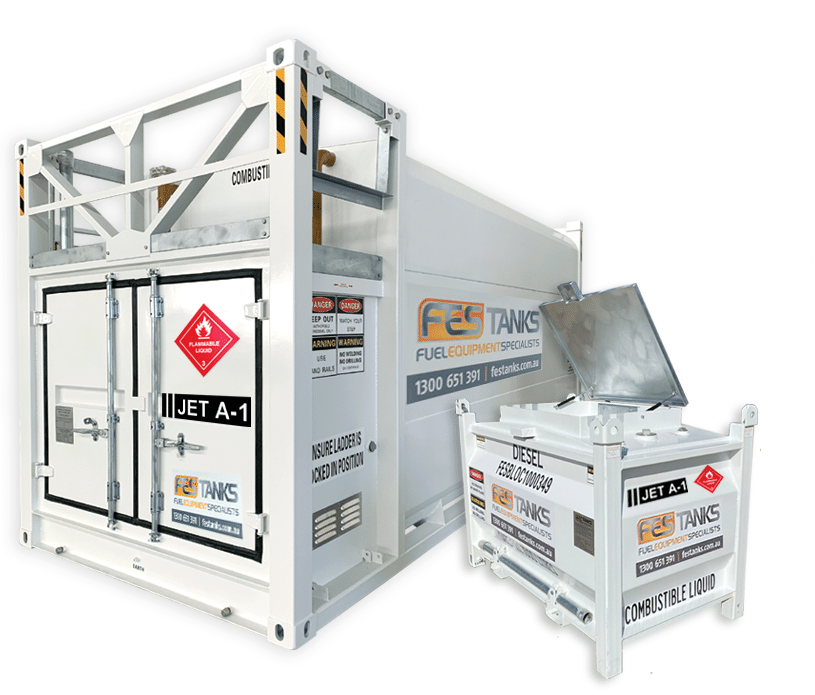

Aboveground Self-bunded Double Walled Tanks
When it comes to aviation fuel storage tanks you can’t take any chances. Contamination could prove fatal, so it’s vital to store aviation fuel only in specialist tanks.
We have you covered whether it’s
Avgas, Jet A1 or Sustainable Aviation Fuel.
That’s why F.E.S. is a trusted aviation tank manufacturer – we manufacture our aboveground tanks with uncompromising attention to quality and meticulous attention to detail. Naturally, they meet – or exceed – all current Australian safety regulations. F.E.S. aviation fuel tanks also come with several unique features that make them easier to use, easier to maintain and last longer.
Aviation fuel storage to meet your specific need
Getting the right aviation fuel tank in the right size with the right combination of dispensing systems is a complex business, but we have the expertise to guide you through all the options. What’s more, we make each tank specifically to your requirements. Whether you’re a farm in the middle of nowhere, or a busy airstrip at a mining plant, you can be absolutely sure F.E.S. will supply the right aviation tanks and fuel management systems to suit your needs.
Our Aviation Tanks are perfect for
- Small Commercial Airfields
- Private Airfields
- Isolated Rural Airfields
- Royal Flying Doctors Bases
- Onshore – Offshore Refuelling
- Helicopter (helipad) Facilities
Aviation tanks ranging from 12,000l to 110,000l
Our self-bunded double walled tanks can be easily installed on most sites – there is no longer a need to build expensive underground storage with all the decontamination issues that involves. What’s more, our aviation fuel tanks are coated to twice the thickness of many others, for a much longer life.
BLOC AVIATION FUEL TANKS
Compatible with Avgas, Jet A1 or Sustainabel Aviation Fuel. Dimensions are nominal only. Alternative capacities available upon request.
MODEL
BLOC 1000Av
- SFL – 1000L
- Capacity – 1250L
- Length (mm) – 1864
- Width (mm) – 1100
- Height (mm) – 1309
- Tare (kg) – 826
- Baffled – YES
MODEL
BLOC 2500Av
- SFL – 2350L
- Capacity – 2755L
- Length (mm) – 2274
- Width (mm) – 1674
- Height (mm) – 1309
- Tare (kg) – 1240
- Baffled – YES
MODEL
BLOC 4500Av
- SFL – 4180L
- Capacity – 4785L
- Length (mm) – 2774
- Width (mm) – 2274
- Height (mm) – 1309
- Tare (kg) – 1785
- Baffled – YES
MODEL
BLOC 6000Av
- SFL – 5500L
- Capacity – 6180L
- Length (mm) – 3574
- Width (mm) – 2274
- Height (mm) – 1309
- Tare (kg) – 2180
- Baffled – YES
MODEL
BLOC 10000Av
- SFL – 10000L
- Capacity – 11500L
- Length (mm) – 6058
- Width (mm) – 2438
- Height (mm) – 1295
- Tare (kg) – 4500
- Baffled – YES
GRANDE AVIATION FUEL TANKS
Compatible with all types of aviation fuel such as Avgas, Jet A1 or Sustainable Aviation Fuel (SAF). Dimensions are nominal only. Alternative capacities available upon request.
MODEL
GRANDE 12Av
- SFL – 11115L
- Capacity – 12000L
- Length (mm) – 2991
- Width (mm) – 2438
- Height (mm) – 2896
- Tare (kg) – 4750
- Pump Bay – YES
- Baffled – NO
MODEL
GRANDE 20Av
- SFL – 16900L
- Capacity – 17800L
- Length (mm) – 2991
- Width (mm) – 2438
- Height (mm) – 2896
- Tare (kg) – 5100
- Pump Bay – NO
- Baffled – NO
MODEL
GRANDE 30Av
- SFL – 28800L
- Capacity – 30400L
- Length (mm) – 6058
- Width (mm) – 2438
- Height (mm) – 2896
- Tare (kg) – 7850
- Pump Bay – YES
- Baffled – NO
MODEL
GRANDE 55Av
- SFL – 53960L
- Capacity – 56800L
- Length (mm) – 12192
- Width (mm) – 2438
- Height (mm) – 2591
- Tare (kg) – 12890
- Pump Bay – YES
- Baffled – NO
MODEL
GRANDE 68Av
- SFL – 63000L
- Capacity – 66400L
- Length (mm) – 12192
- Width (mm) – 2438
- Height (mm) – 2896
- Tare (kg) – 13650
- Pump Bay – YES
- Baffled – NO
MODEL
GRANDE 110Av
- SFL – 100700L
- Capacity – 106000L
- Length (mm) – 14630
- Width (mm) – 2438
- Height – 3550
- Tare (kg) – 18600
- Pump Bay – NO
- Baffled – NO
Avoiding the risk of aviation fuel contamination
The number one priority for aviation fuel storage is to avoid contamination. By law any part of the tank that could come into contact with the fuel must be stainless steel so that there is no danger of rust. Our aviation tanks have a 100% stainless steel inner tank and all fittings are also made of stainless steel. This not only meets all safety requirements and is very long lasting, but also gives you complete peace of mind on the operational integrity of the tank overall.
Hassle-free Baffles
Some manufacturers use baffles as part of the structural integrity of the tank construction or to keep fuel stable should the tank be moved with fuel inside. However, with aviation fuel tanks, baffles can act as collection points for water condensation – something best avoided.
We’ve found customers have a greater need for tank mobility with smaller tanks, and that sometimes means moving a tank full of fuel. Our Bloc aviation fuel tanks are constructed with internal baffles as they help restrict the movement (sloshing) of fuel when a tank is being moved.
However, our baffles have been designed to ensure the free flow of water and particulates along the bottom of the tank floor. Combine that with a sloping floor design and you get a free drainage floor pan down to a single drainage point. This helps with the safe removal of water or contaimments from aviation fuel as part of your daily maintenance program.
F.E.S. Grande aviation fuel tanks are made without internal baffles, ensuring a free drainage floor pan and allowing for the safe removal of water from aviation fuel as part of your daily maintenance program.
