BLOC 6000
6,000L Self Bunded Fuel Storage Tank
6,000L Self Bunded Storage Tank
Diesel, Petrol or Oil Compatible

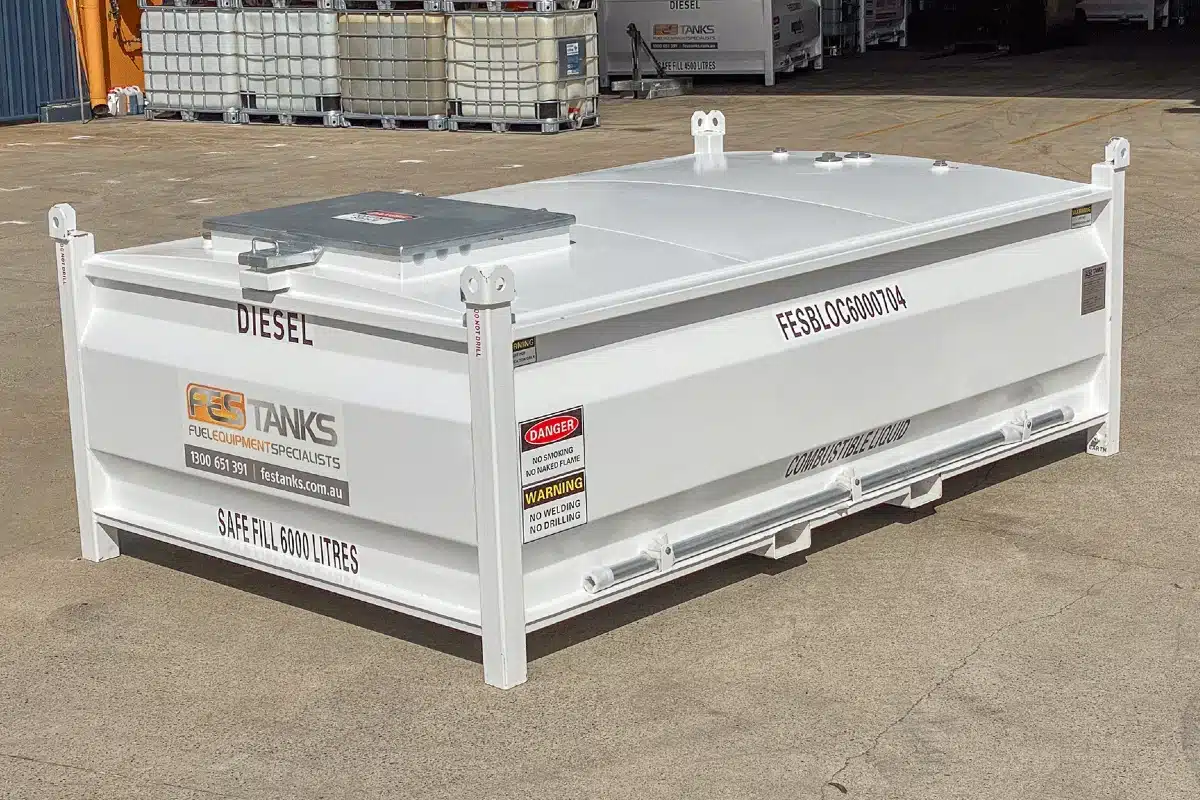

The BLOC 6000 self bunded fuel tank is designed for safe storage of diesel, flammable liquids, oils and hydrocarbons up to 6,000 litres. It has a double-wall steel construction and a weather-proof design for harsh external conditions.
For operators wanting to get the competitive savings and reliability of large volume fuel storage with all the flexibility of a design and drop installation. Plug and play commissioning on site ensures this tank ticks all the boxes.
The BLOC 6000 fuel tank is a practical fuel storage solution for the mid-sized operator who needs to combine a larger volume with the versatility of portable fuel storage.
This tank is great for heavy commercial use as it also offers the flexibility of adding fuel dispensing equipment. The BLOC 6000 makes an ideal refill tank for refuelling machinery including tractors and earthmoving equipment. It’s also a great self-contained option for restocking smaller portable poly ute tanks.
Our fuel equipment specialists will help with fuel management and pumping solutions to make installation and transition as simple as possible. Plug and pump is our motto and will have you up and refuelling in no time.
Standards & Warranties
We created our unique range of self bunded tanks to comply with all aspects of aboveground fuel storage tanks regulations and compliance so you don’t have to.
BLOC 6000 Tank Data
- Gross volume - 6,200 litres
- Safe Fill Level - 6,000 litres
- Empty (tare) weight – 2,180 kg
- Length - 3,574 mm
- Width - 2,274 mm
- Height - 1,309 mm
- Tanks can be stacked four high empty, and two high full to maximise storage space
Fuel Storage Compatibility
- Diesel
- Flammable Liquids
- Kerosene
- Lubricants
BLOC Standard Features
- Mobile and modular self-bunded fuel storage tank
- Double-walled construction consisting of:
- 5 mm Inner primary steel tank
- 3 mm Outer secondary steel tank
- Curved roof feature for water drainage to top of tank*
- Accessible and removable tank manway for internal tank maintenance and cleaning
- Complete with aluminium gauged dipsticks, 1 x galvanized updraft vent breather system and multiple port fittings
- Sectional cut-outs on sides of spill box to allow flexible hoses or pipework to external requirements (i.e. generators)
- Designed to AS 1940, UL142 and ULC-S601
- Built to AS1692, CAT-3
- Baffled internally. UN31AY approved
- Practical design allows for ease of transportation
- Forklift pockets
- Certified tie down/lifting points at each corner
- 250 - 300 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)
- Combustible liquid safety labels and decals supplied as standard
- Air tested and hydrostatic tested prior to leaving our factory
*Standard product specification and fitting arrangement may change as products evolve.

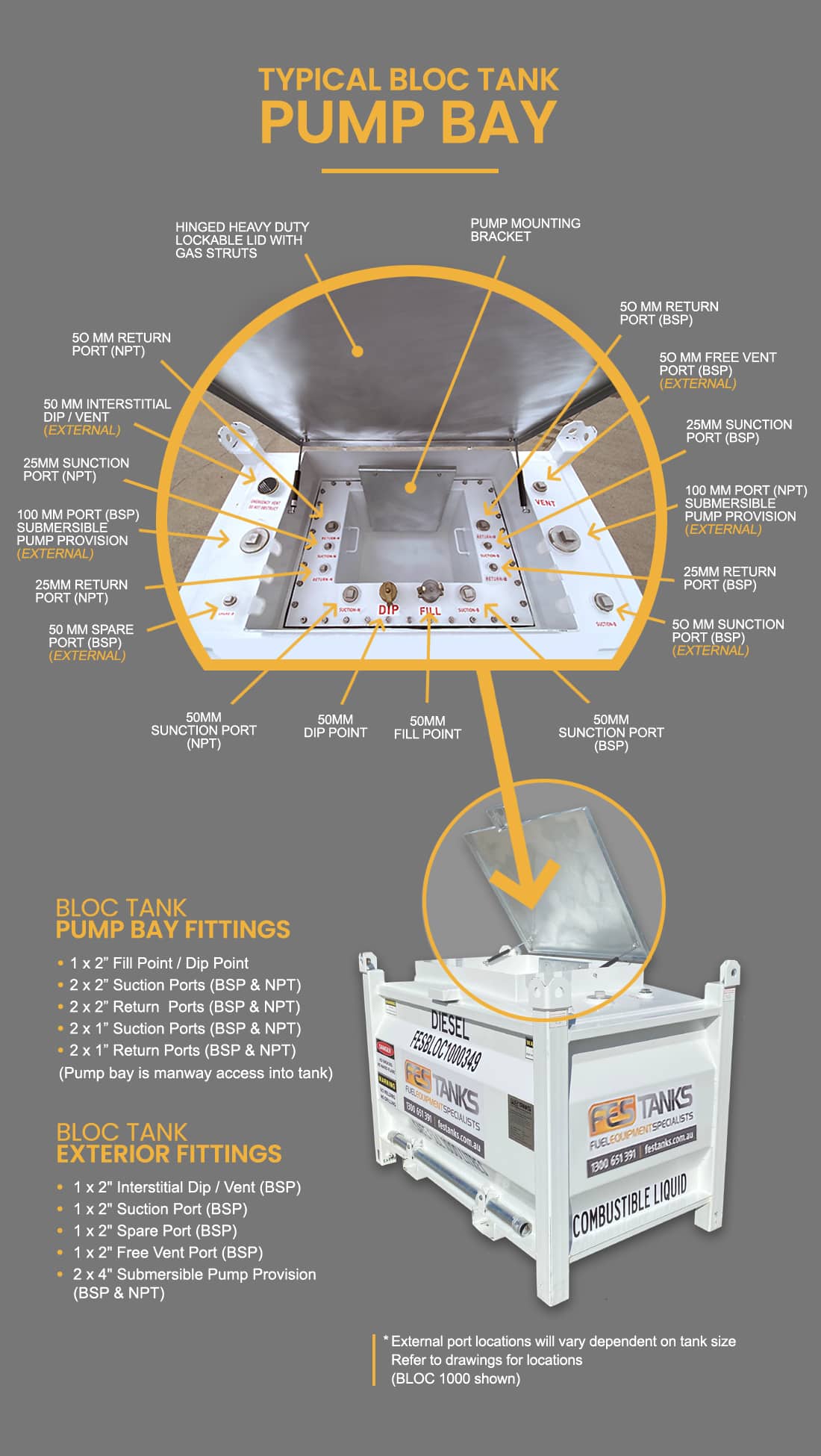

Exterior Fittings
- 1 x 2” Interstitial Dip / Vent
- 1 x 2” Suction Port (BSP)
- 1 x 2” Spare Port
- 2 x 4” Submersible Pump Provision (BSP & NPT)
- 1 x 2” Free Vent Port
Manway Fittings (inside lid)
- 1 x 2” Fill Point
- 1 x 2” Dip Point
- 2 x 2” Suction Ports (BSP & NPT)
- 2 x 2” Return Ports (BSP & NPT)
- 2 x 1” Suction Ports (BSP & NPT)
- 2 x 1” Return Ports (BSP & NPT)
F.E.S. TANKS Warranty
- 12 Month Manufacturer Warranty
- 12 Month Paint Warranty
- 7 year Structural Manufacturer Warranty
Watch the video

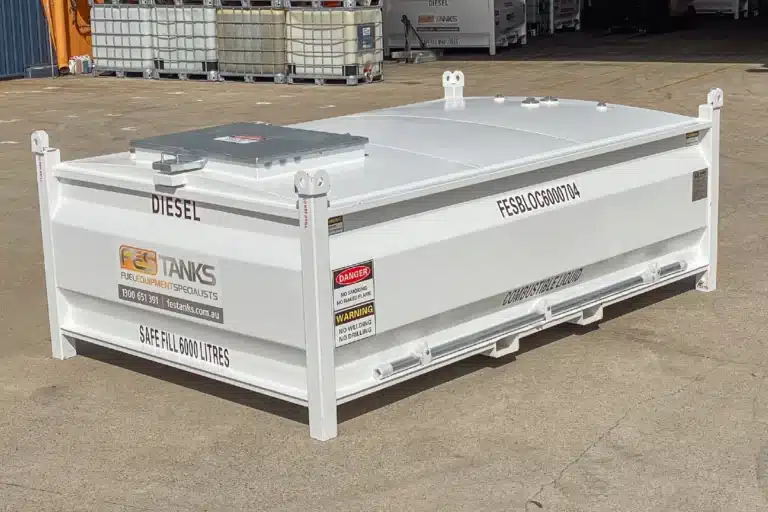

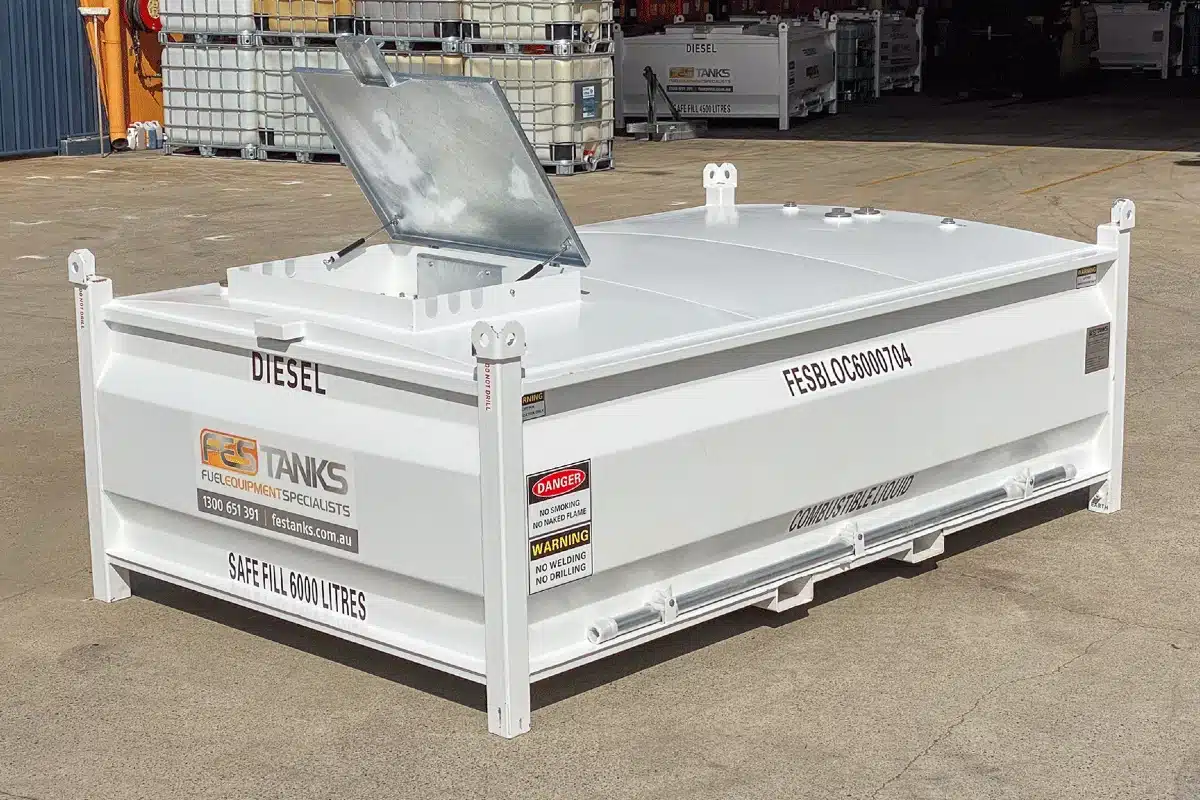

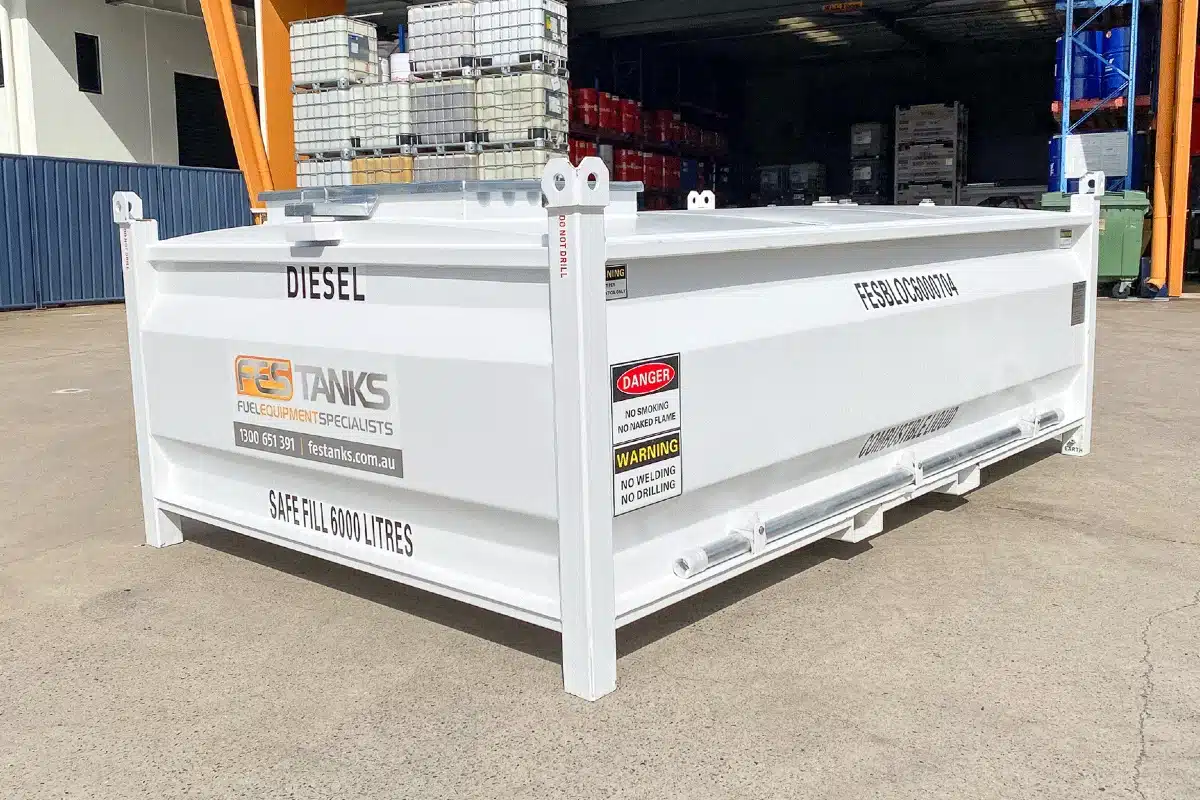

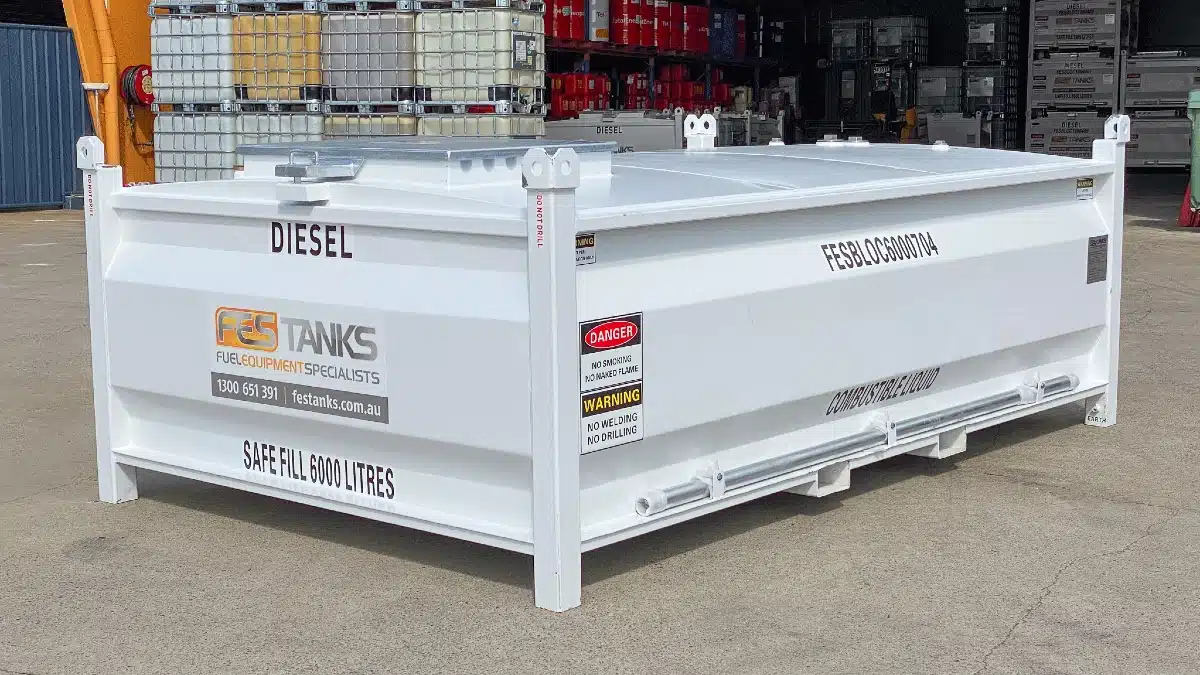

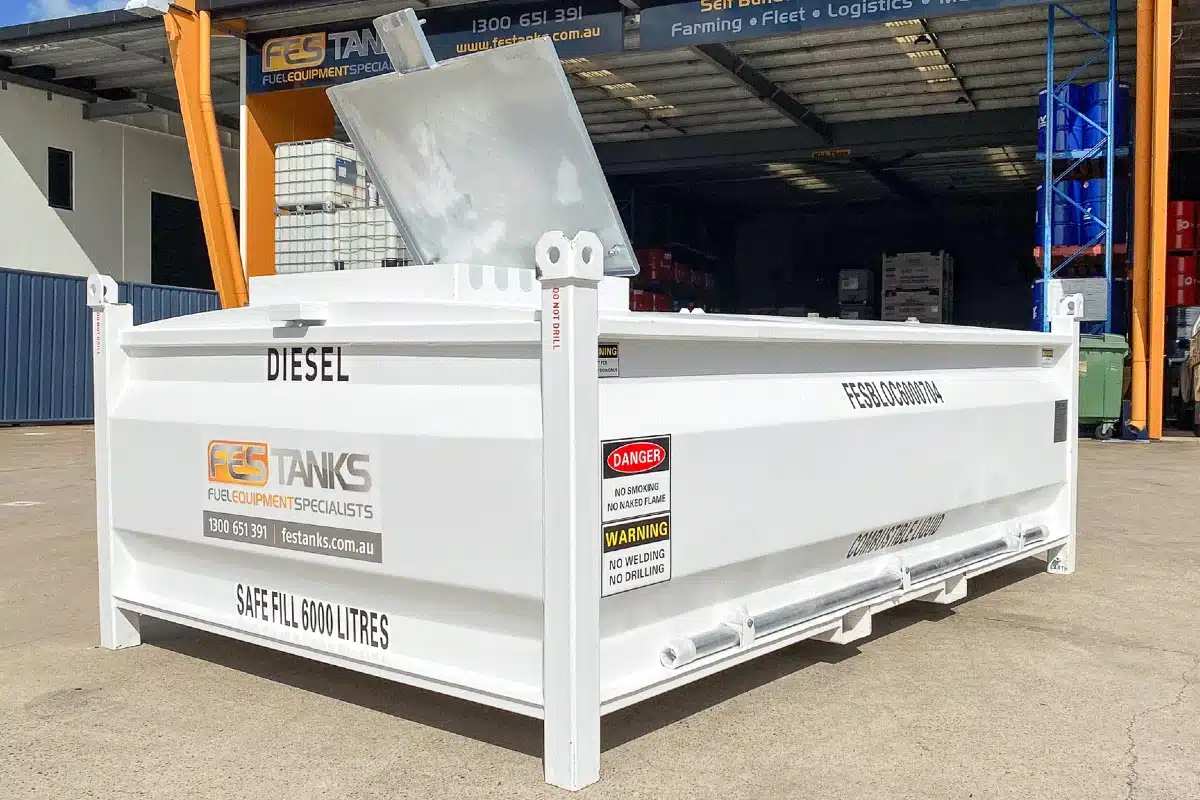

6,000L Self Bunded Fuel Storage Tank Photo Gallery
