110,000L Aboveground Fuel Storage Tank
Diesel, Petrol or Oil Compatible

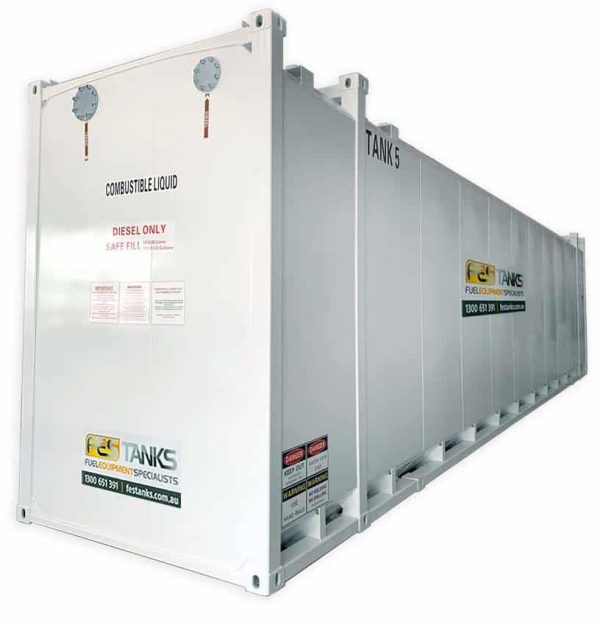

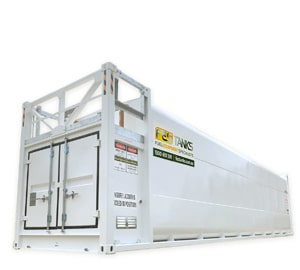

The Grande 110 is a 48” ISO shipper container style aboveground fuel storage tank only. It doesn’t have an incorporated pump bay like the GRANDE 68, GRANDE 30 or GRANDE 12. It is fully equipped with internal and fill point pipework and comes standard with ISO container style corner casings for trouble-free transportation.
The GRANDE 110 was designed purley to maximise the storage capacity within the footprint of a 48” ISO shipping container whilst still giving you the convenience of conventional road transport options.
This design guarantees savings on transport cost whilst ensuring the maximum fuel storage capacity available, perfect for the operator who has high volume refuelling requirements in any location.

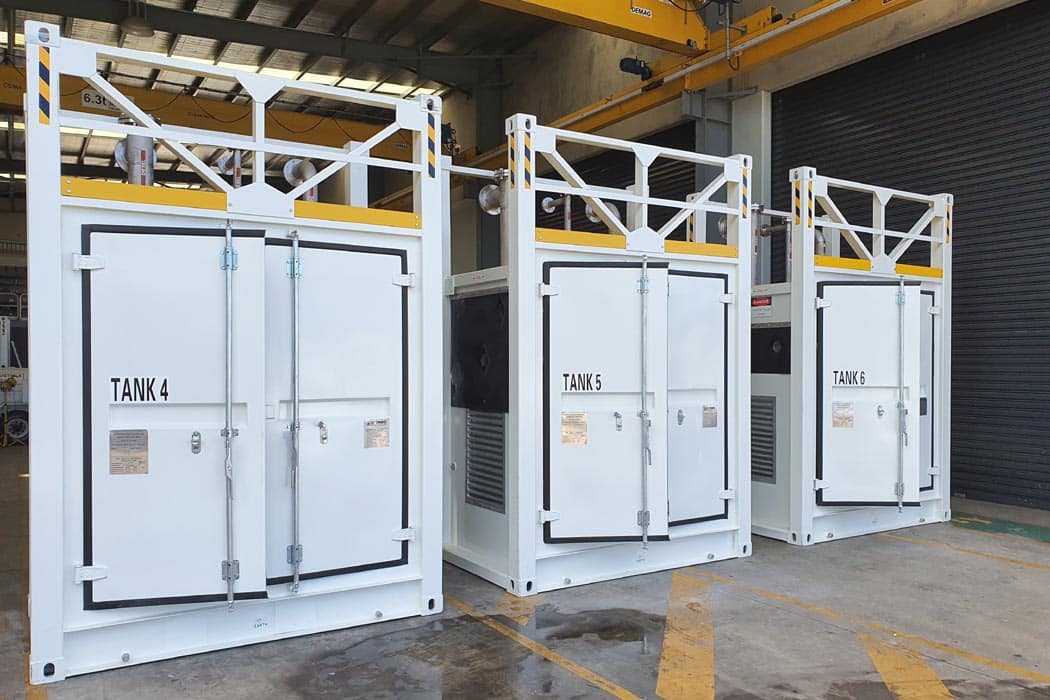

Once on site, modular pump bays with fuel management systems can be attached to the front of the GRANDE 110 to allow for safe, measured fuel dispensing and filling from the storage unit.

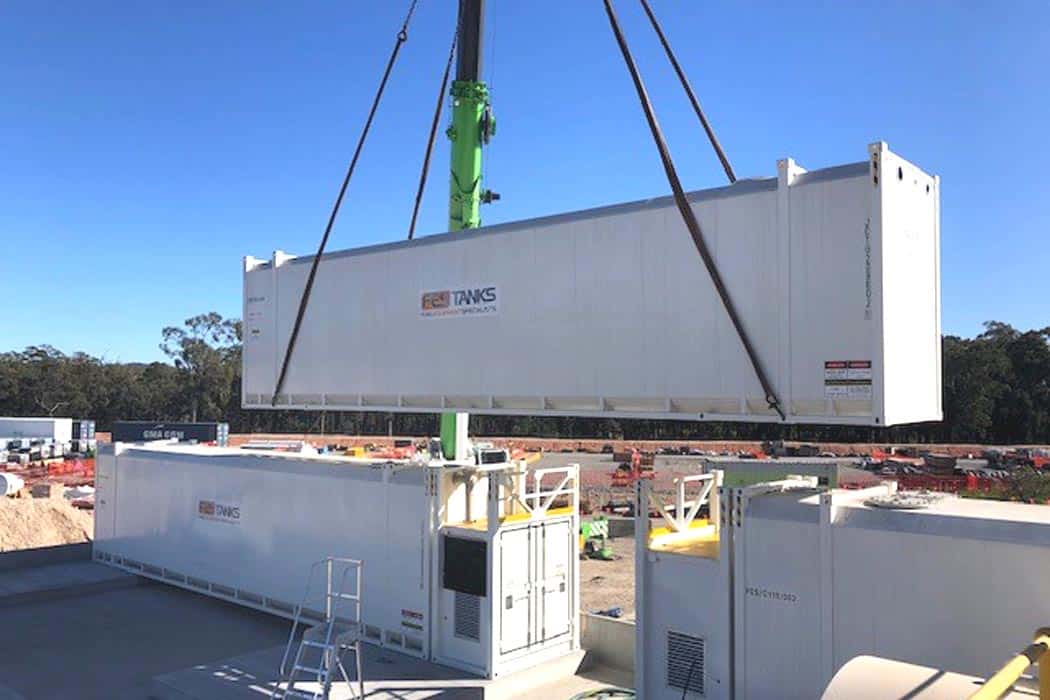

With a modular design and double-walled steel construction, the GRANDE 110 large volume storage tank is a popular choice for remote refuelling. The GRANDE 110 tank complies with Australian Standards for the Storage and Handling of Flammable and Combustible Liquids whilst eliminating the need for costly concrete containment areas and site preparation work. Why not lay down multiple tanks in series to create a bulk fuel farm.
For operators looking to ensure a quality, reliable fuel supply that will help minimise downtime and keep equipment safe in remote areas, this tank offers a cost-effective and fully compliant solution. Just dropship into place and you’re ready to connect to mains power or solar, fill and go.
The GRANDE 110 comes in a variety of colours, coatings and custom dimensions, Refuelling packages can be tailored to suit all applications.
Ask our fuel experts to show you how the GRANDE 110 can improve your fuel logistics and drive down overheads for your business.
Standards & Warranties
We created our unique range of self bunded tanks to comply with all aspects of aboveground fuel storage tanks regulations and compliance so you don’t have to.
GRANDE 110 Tank Data
- Gross volume - 113,100 litres
- Safe Fill Level - 107,400 litres
- Empty (tare) weight - 19,060 kg
- Length -14,630 mm
- Width - 2,438 mm
- Height - 3,550 mm
Fuel Storage Compatibility
- Diesel
- Flammable Liquids
- Kerosene
- Lubricants
GRANDE Standard Features*
Aboveground modular ISO containerised self-bunded fuel storage tank design and constructed to AS1940, AS1692, AS1657, UL142 and ULC-S601-14 compliance as standard.
- Double-walled construction consisting of:
- 6 mm Inner primary steel tank
- 6 mm Outer secondary steel tank
- Lockable self-contained pump bay and dispensing area to front of the tank
- Curved roof feature for water drainage to top of tank*
- Extra paint thickness based on 250-300 microns for extra protection during harsh climates
- Supplied with all statutory signage.
- In-built tank access ladder and platform
- Dual 2" manway tank access points
- Updraft vent pipe
- Aluminum anodized dipstick
- Interstitial space monitoring point with anodized dip stick
- Audible overfill protection alarm
- 6” and 4 “sockets for installation of submersible pumps
- Bunded cowling and dispensing area
- Suitable for fuel farm configuration (master and slave)

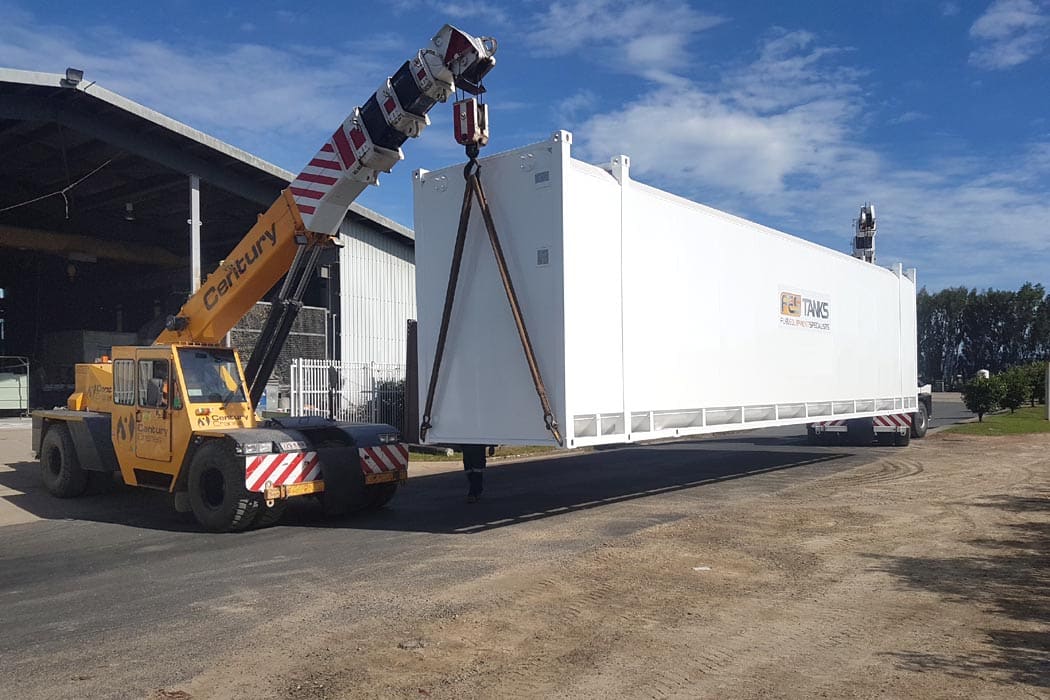

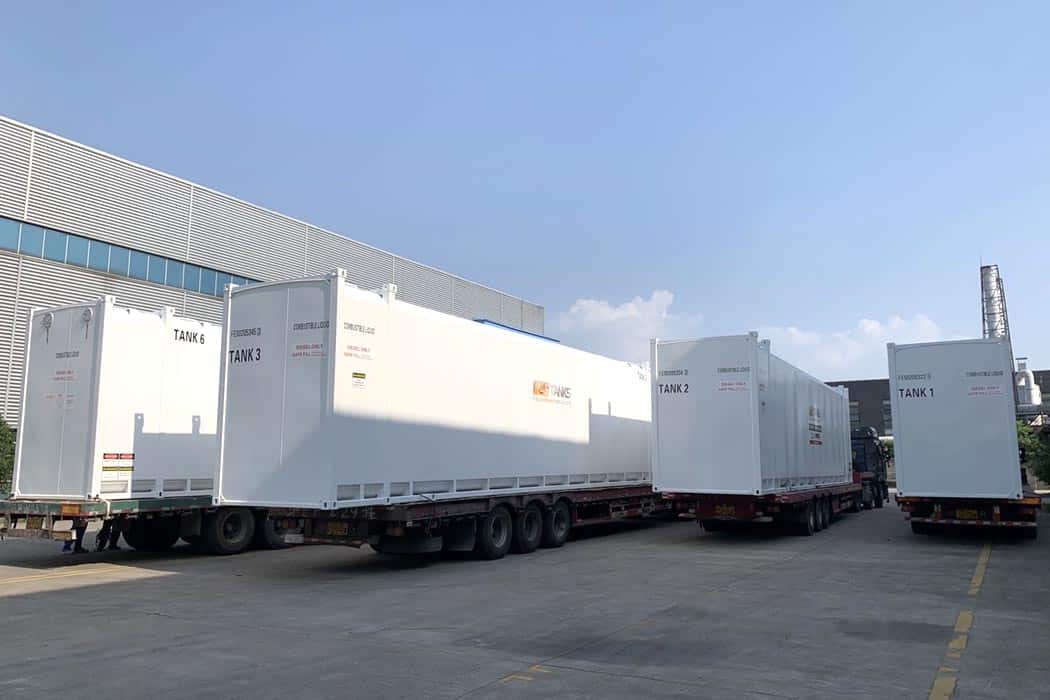

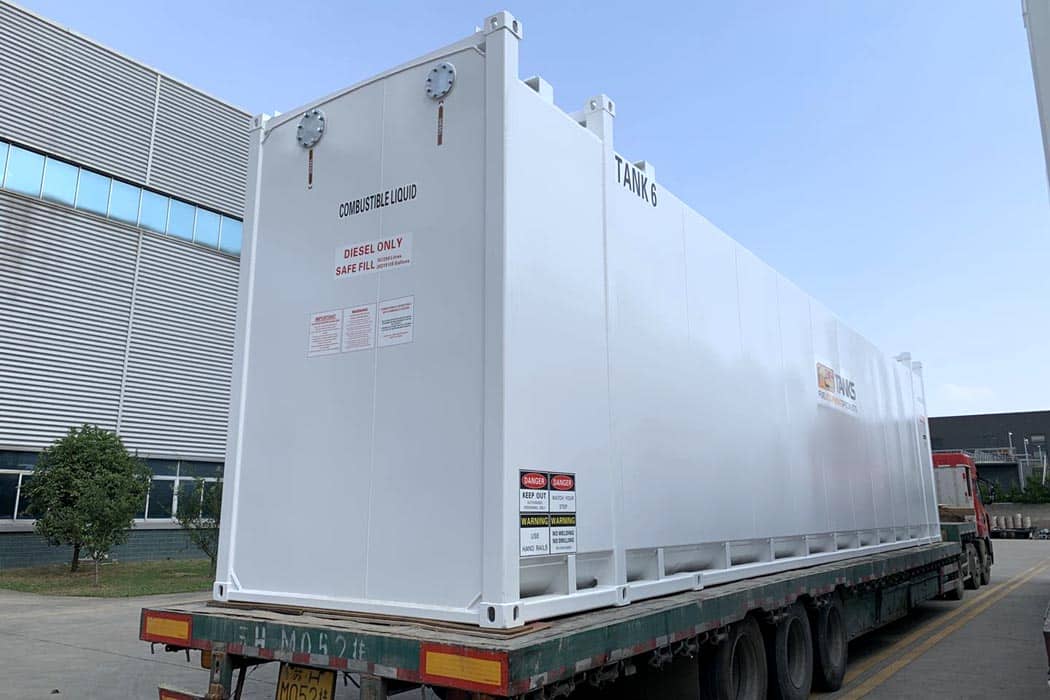

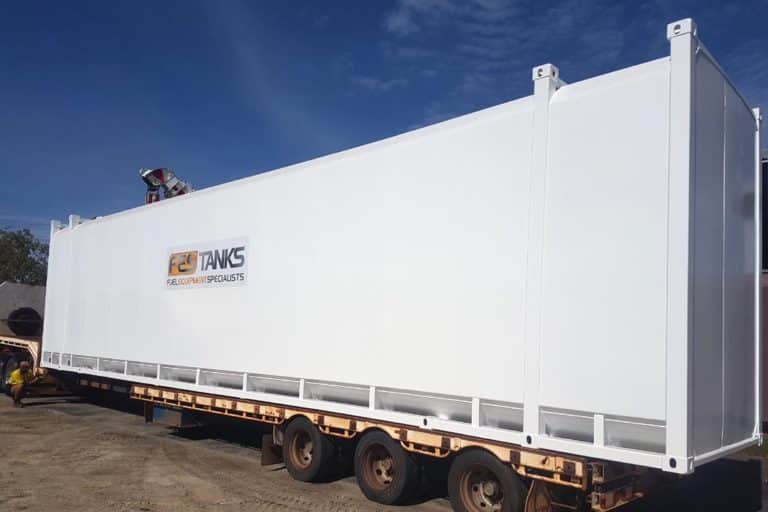

- Transportable by flatbed trailer or drop deck extendable trailer
- 250 - 300 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)
*Standard product specification and fitting arrangement may change as products evolve.
Incoming Fuel / Product
- 80nb Tanker fill pipework
- Fire safe flanged ball valve, camlock adaptor & cap
- Non return valve
- Hydraulic overfill valve with optional unload pump
- Internal pipe work serviceable
- High level alarm; hazardous rated & battery powered
Outgoing Fuel / Product
- Anti-siphon valve (foot valve)
- Pipework terminates under walkway with ANSI flanges
- 6" and 4" sockets in both manholes for the mounting of submersible pumps standard
- Pump suction line including priming point plug

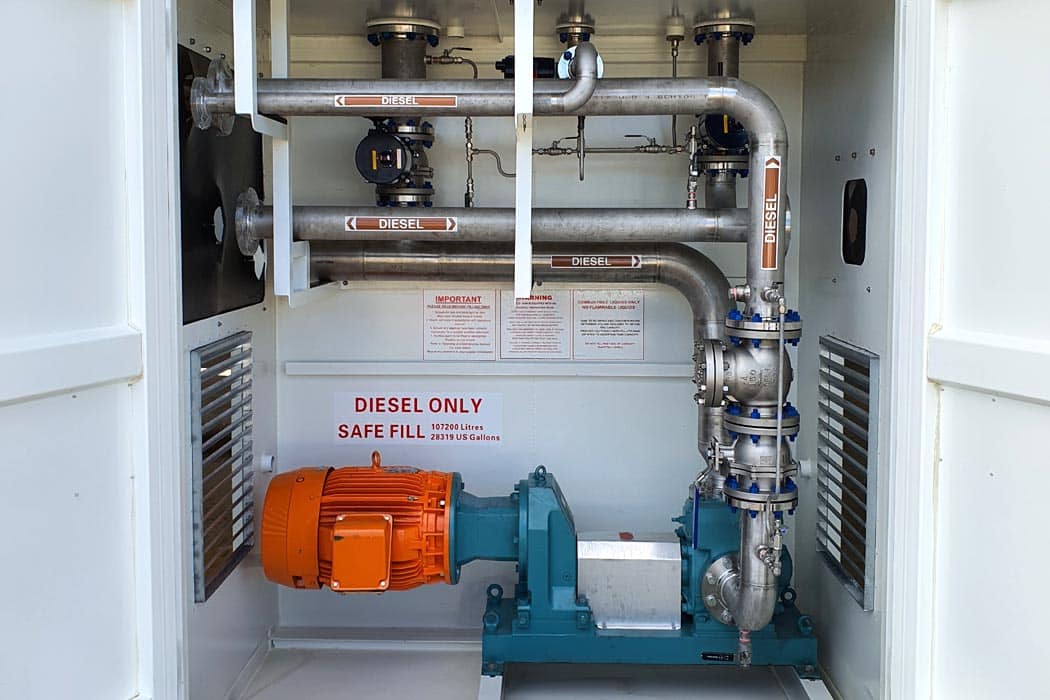

Pump Bay
- NO PUMP BAY BUILT INTO UNIT AS STANDARD (Fuel Storage Tank Only)
- Modular pump bay can be attached if required
F.E.S. TANKS Warranty
- 12 Month Manufacturer Warranty
- 12 Month Paint Warranty
- 7 year Structural Manufacturer Warranty
